Rapid prototyping is a way to reduce uncertainty in a design. The useful question is what the next physical sample should demonstrate: appearance, assembly, motion or a particular functional requirement. Printing quickly matters only when the result answers that question.

Define the test before producing the part

Specify the critical dimensions, interfaces and operating conditions. A display model can help assess proportions, while an assembly sample can reveal access or interference problems. A functional test needs suitable material, orientation and loading conditions. Do not assume that a successful visual prototype establishes strength or production readiness.

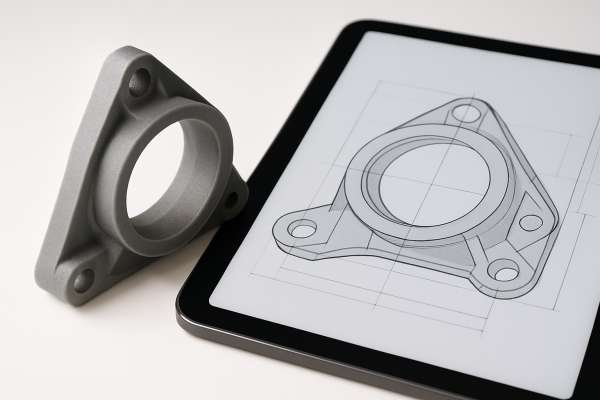

Confronto tra modello CAD e prototipo stampato in 3D

Keep the CAD revision traceable

Identify the source model, exported file, units and design revision. Record why a feature changed and which test will check it. After a print, retain measurements and photographs with that revision so that the next design decision follows evidence rather than memory.

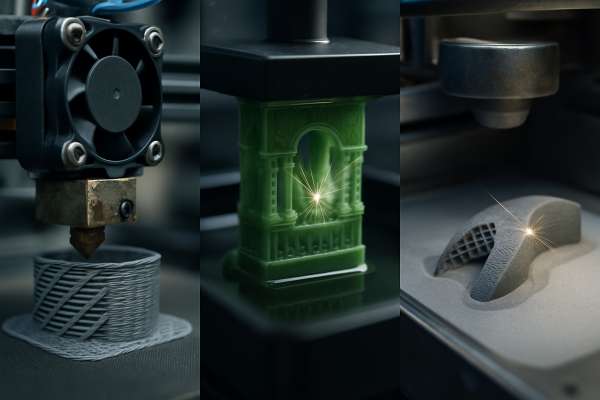

Differenze tra tecnologie di stampa 3D FDM, SLA e SLS

Choose a process for the geometry and material

FDM, resin-based printing and powder-based methods offer different combinations of material, surface finish, support strategy and post-processing. SLS can be a useful option for some polymer components, but it is not the only possible process for a loaded part. Suitability depends on the material data, geometry, manufacturing conditions and validation. A precision fit may require adjustment or machining rather than a promise that it will be perfect directly from the printer.

Budget for the complete iteration

A cycle includes preparation, printing, cooling or curing where applicable, support removal, finishing and measurement. Times depend on the part and process. A small change may be quick; another may require several iterations. Quote a lead time for the actual job rather than treating an overnight print or a low material cost as a universal expectation.

Evaluate and decide the next step

  • Measure the specified dimensions and test the intended interfaces.
  • Record deviations and distinguish design issues from process effects.
  • Change one relevant assumption at a time where practical.
  • Repeat the test after material or manufacturing changes.
  • Carry unresolved risks into the production decision.

Know when another process is appropriate

A printed prototype can inform a later CNC, moulded or assembled part, but those processes introduce their own design constraints. The production decision should address quantity, material, repeatability, inspection and lifecycle cost. My Numero 5 diary shows the distinction between CAD checks and physical verification; the same distinction keeps a prototyping project honest.

Understand the process differences

FDM deposits material in layers and its orientation can affect surfaces, support needs and mechanical behaviour. Resin-based processes can reproduce fine detail but require appropriate cleaning and curing, and material properties vary significantly. Polymer powder-based processes can support complex geometries within the build, while powder removal and finishing still matter. Choose from the actual requirements and available material data.

A polymer sample may usefully check a metal part’s shape or assembly access, but it cannot establish the metal part’s strength or fatigue behaviour. Conversely, a functional print should not be rejected merely because it is not made with a particular process. State which properties the test represents and which remain unverified.

Plan the transition to production

A small printed batch can sometimes bridge the period before another manufacturing process is ready. Evaluate accepted-part cost, inspection, repeatability and material suitability before making that choice. Injection moulding, machining and printing have different design constraints. A prototype that works once is evidence for the next step, not automatic proof that a production batch will meet its requirements.
